Biogas Industrial Solutions

Overview:

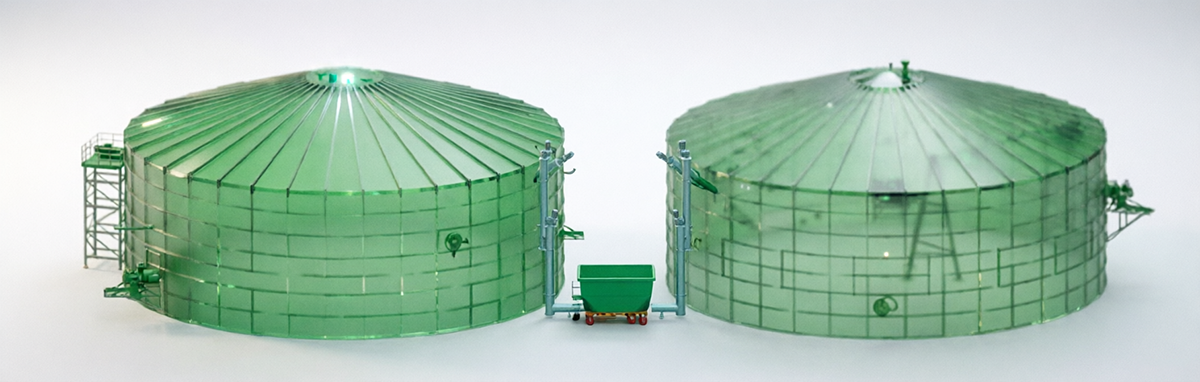

The straw anaerobic fermentation reactor utilizes self-descending high-concentration anaerobic digestion technology. Constructed with electrophoretic assembled tanks and equipped with a solid-state feeding system and a combined mixing system, it is ideal for biogas projects using straw alone or mixed with other biomass feedstocks. Applications include large-scale biomethane plants, centralized treatment facilities, and comprehensive regional biomass treatment projects in rural or urban areas.


Key Features:

1. Integrated Technology: Technology is fully integrated and (built-in/hardwired) into the equipment design.

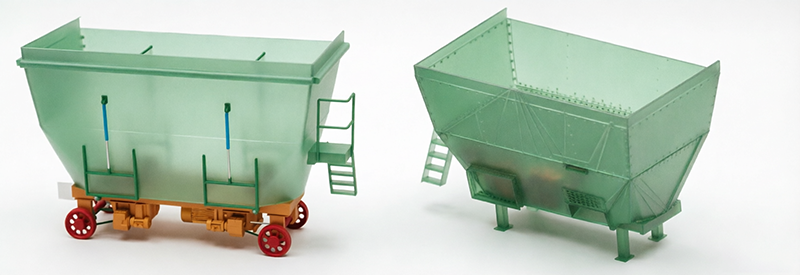

2. 100% Solid-State Feeding: Employs a dedicated system for handling solid feedstock.
3. Hybrid Mixing Strategy: Utilizes a combination of mixing mechanisms for optimal performance.
4. Optimized Flow Fermentation: Features a unique "top inlet, bottom outlet" design combined with horizontal flow and self-descending plug-flow fermentation.
5. CFD-Optimized Design: Developed using gas-liquid-solid three-phase fluid dynamics simulation and optimization technology.

Technical Specifications:

* High Feedstock Concentration: 10-15%
* High Biogas Yield (from corn straw): Up to 500 m³/tVS
* Wide Climate Adaptability: Suitable for cold regions (down to -30°C to -40°C)
* Reactor Volume Range: 500 – 10,000 m³
