Product Showcase
System Overview

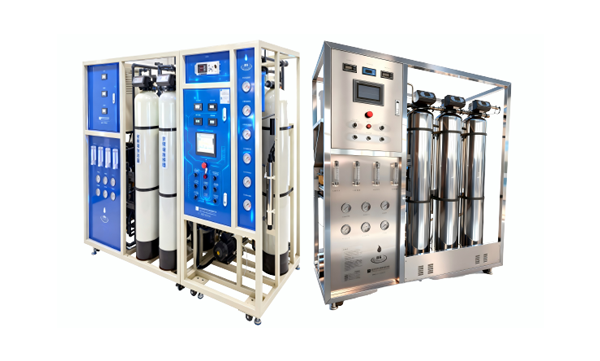

Hongjoy cleaning water purification equipment is designed for medical cleaning applications, providing high-quality purified water for sterilization supply departments and endoscopy rooms. The system ensures stable water quality for critical medical cleaning processes.
System Functions
- Friendly interface operation with touch screen design for simple and convenient operation
- Intelligent equipment control with automatic operation, automatic forward/reverse polarity flushing, and online water quality automatic detection
- Water shortage, power failure, and low voltage protection functions with automatic alarm; automatic operation when water tank is low
- Operating system with manual/automatic quick switching function to handle emergency situations
- Main system using single/dual-stage reverse osmosis process to ensure stable water quality
- Constant pressure circulation water supply system to ensure stable water pressure, flow rate, and quality
Technical Specifications
| Category/Specification | Sterilization Supply Department Cleaning Water Equipment | Endoscopy Room Cleaning Water Equipment |
|---|---|---|
| Product Process | Single-stage Reverse Osmosis Standard Process | Dual-stage Reverse Osmosis Standard Process |
| Model | CSSD Series | ER Series |
| Water Input Quality | Tap water meeting Drinking Water Sanitation Standard (GB5749-2006) TDS≤400ppm; Pressure 0.2~0.4MPa, Water Temperature 5~40℃ | |
| Main Unit Dimensions | 1100 × 580 × 1250 (mm) (Reference dimensions) | |
| Working Power Supply | 380V 50Hz | |
| Water Output Quality | Conductivity ≤15μS/cm (25℃) | Conductivity ≤5μS/cm (25℃) Total Bacterial Count ≤10cfu/100ml |
| Rated Water Production Capacity (L/H) | 250/500 | 1000/1500/2000 | 2500/3000 | 250/500 | 1000/1500/2000 | 2500/3000 |
| Power (KW) | 2-4 | 4-6 | 5-8 | 2-4 | 5-8 | 6-10 |
| Equipment Weight (KG) | 500-1500 | 1000-2500 | 1000-2500 | 1000-2000 | 2000-3000 | 3000-4000 |
| Floor Area (m²) | 3-4 | 6-10 | 6-10 | 8-10 | 10-15 | 15-20 |
| Connection Pipe Diameter | DN15-20 | DN20-32 | DN25-40 | DN15-20 | DN20-32 | DN25-40 |
Note: Specifications correspond to production capacity ranges listed above.
Product Models
CSSD Series
Single-stage RO process for general medical instrument cleaning with conductivity ≤15μS/cm. Ideal for hospital sterilization supply departments and instrument reprocessing centers.
| Capacity (L/H) | Power (KW) |
|---|---|
| 250/500 | 2-4 |
| 1000/1500/2000 | 4-6 |
| 2500/3000 | 5-8 |
ER Series
Dual-stage RO process for critical endoscopic cleaning with conductivity ≤5μS/cm and bacterial control. Specifically designed for endoscopy departments and sensitive medical device cleaning applications.
| Capacity (L/H) | Power (KW) |
|---|---|
| 250/500 | 2-4 |
| 1000/1500/2000 | 5-8 |
| 2500/3000 | 6-10 |
Standard Requirements
Medical Cleaning Water Standards
- WS310.1-2016 Cleaning Water Requirements: Should have tap water, hot water, soft water, purified water supply; tap water should comply with GB-5749-2022 regulations, final rinse water conductivity should be ≤15μS/cm (25℃).
- WS507-2016 Purified Water Requirements: Should comply with GB-5749-2022 regulations, final rinse water conductivity ≤5μS/cm (25℃), and should ensure total bacterial count ≤10cfu/100ml; filter membrane aperture for producing purified water should be ≤0.2μm, and replaced regularly. Sterile water is water that has undergone sterilization process; microbiological testing of purified water or sterile water should be conducted when necessary.
Application Areas
Sterilization Supply Department
Medical instrument cleaning, disinfection and sterilization processes, surgical instrument reprocessing, and central sterile supply department operations.
Endoscopy Room
Endoscope cleaning and disinfection, bronchoscope reprocessing, gastrointestinal endoscopy cleaning, and other sensitive medical device cleaning applications.
