System Overview

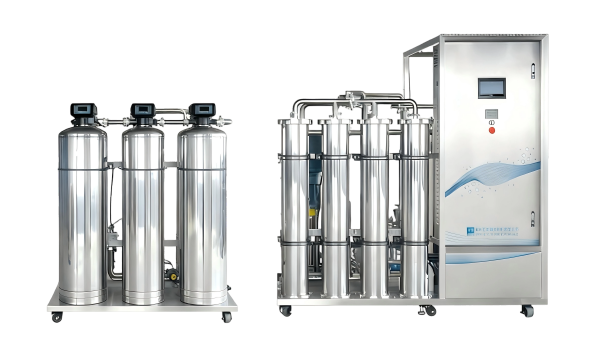

Hongjoy Hemodialysis Water Treatment System is specifically designed for hemodialysis applications, providing ultra-pure water that meets stringent medical standards for dialysis treatment. The system prevents secondary water contamination through reverse osmosis coupling direct supply and features advanced automation for reliable operation.
System Features
- Programmable automatic water production with timed start-up periods using reverse osmosis coupling direct supply to prevent secondary water contamination
- Visual human-machine interface system with friendly touch screen, real-time display of working status, and multi-modal selection conversion
- Intelligent equipment control, automatic tank flushing, online automatic water quality monitoring, and automatic fault alarm
- Multiple protection modes including high pressure, water shortage, short circuit, overload, and phase loss protection
- Automatic alarm or prompt based on fault condition and severity with on-screen solution prompts
- Full circulation with no dead space design, high-quality 316 stainless steel pipeline closed-loop connection to prevent bacterial growth
- Activated carbon tank with high-precision residual chlorine online detection, dual strict control of residual chlorine and chloramine hazards
- Digital flow closed-loop water-saving technology with reasonable recovery ratio configuration based on water quality
- One-button disinfection with automatic switching between circulation, cleaning, standby modes, automatic recording of disinfection process for data traceability
Technical Specifications
Product Model
ULPTX_-2000DRO
Water Production Capacity
≥2000L/h
Salt Rejection Rate
>99%
Recovery Rate
≥70%
Water Quality Standard
Meets "Water for Hemodialysis and Related Therapies" (YY0793-2022) requirements
Bacterial Count/Endotoxin
≤50cfu/ml, ≤0.25EU/ml
Power
14KW
Floor Area
8-10m²
Equipment Dimensions
Main Unit: 2000×1000×1950 (mm)
Floor Load Capacity
≥500kg/m²

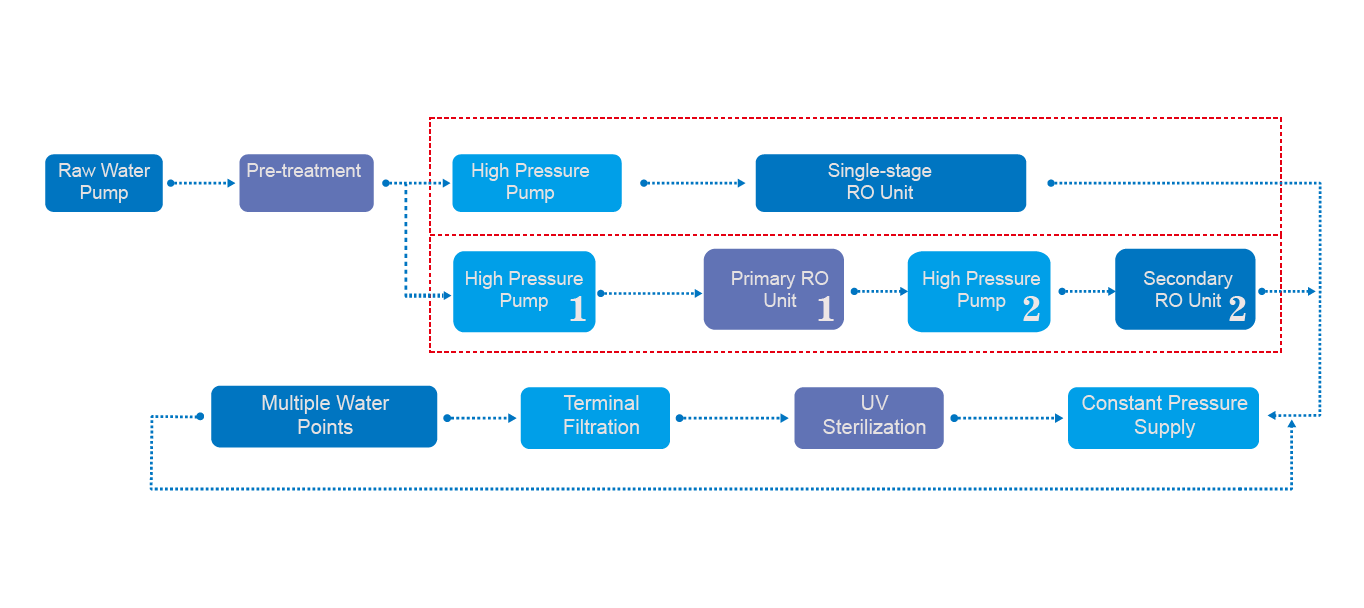

Hemodialysis Water Flow Diagram
Explore the complete water treatment process from source to dialysis machine with our interactive flow diagram.
Municipal water enters the system through a pre-treatment unit to remove large particulates and sediment.
Multi-layer filtration including sediment filters, activated carbon filters, and softeners to remove chlorine, chloramines, and other contaminants.
Dual-stage reverse osmosis system removes dissolved solids, bacteria, and endotoxins to produce high-purity water.
Purified water is stored in stainless steel tanks and distributed through a closed-loop circulation system to dialysis stations.
Continuous online monitoring of water quality parameters including conductivity, TOC, and bacterial count.
Ultra-pure water is delivered to hemodialysis machines for patient treatment, meeting all medical standards.
Thermal Disinfection System (Optional)
Advanced Thermal Disinfection Features
- Wide Application Range: Independent external heating system
- Intelligent Control: Color touch screen with fully automatic control system
- Strong Compatibility: Can connect to C-PVC/stainless steel/PEX material pipelines, temperature resistant up to 100℃
- Excellent Sterilization Effect: Electromagnetic device with dual intelligent temperature controllers for precise temperature control, preventing bacterial growth and endotoxin contamination
- Technical Specifications: Color touch screen with fully automatic control system
Product Models
Standard Model
High-capacity hemodialysis water treatment system with production capacity ≥2000L/h, designed for medium to large dialysis centers.
Key Features: Dual RO system, automatic disinfection, real-time monitoring
Thermal Disinfection Model
Includes advanced thermal disinfection system for enhanced sterilization, suitable for hospitals with strict infection control requirements.
Key Features: Thermal disinfection (100℃), dual temperature control, compatible with multiple pipeline materials
Application Areas
Hospital Dialysis Centers
Central water supply systems for hospital-based hemodialysis units, ensuring consistent water quality for multiple dialysis stations.
Independent Dialysis Clinics
Standalone dialysis facilities requiring reliable, high-volume water production for outpatient hemodialysis treatment.
Renal Care Facilities
Specialized renal treatment centers with multiple dialysis machines operating simultaneously.
Safety & Compliance
Regulatory Compliance
The Hongjoy Hemodialysis Water Treatment System is designed to meet and exceed international standards for dialysis water quality, including YY 0793-2022 and other regional hemodialysis water standards.
The system includes comprehensive safety features to protect patients from waterborne contaminants during dialysis treatment, with particular attention to bacterial control, endotoxin removal, and chemical purity.
