Product Showcase

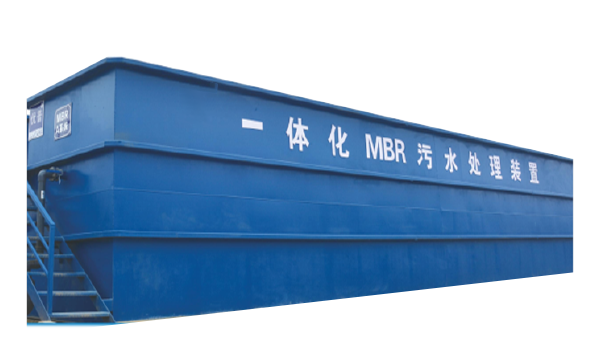

Explore the advanced features and components of the Hongjoy UPMBR Integrated Sewage Treatment Device.
High Efficiency
Advanced MBR technology ensures superior treatment efficiency with minimal footprint.
Eco-Friendly
Reduces sludge production by 70-80% and eliminates chemical disinfectants.
Automated Control
Fully automated system with remote monitoring capabilities for minimal manual intervention.

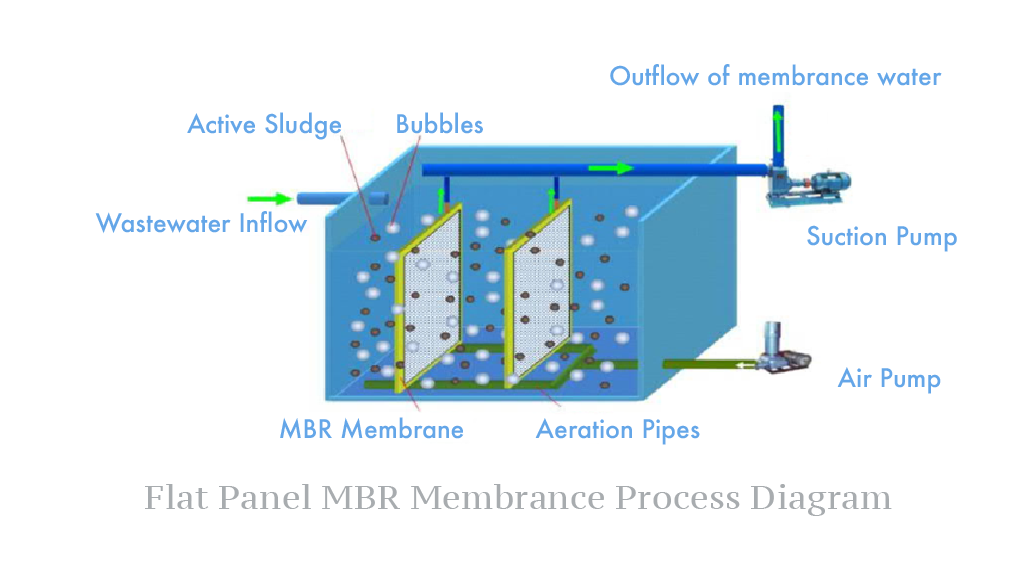

MBR Process Introduction
The Membrane Bio-Reactor (MBR) is an innovative wastewater treatment system that combines membrane separation technology (ultrafiltration, microfiltration, or nanofiltration membrane modules) with biological treatment processes. The MBR membrane system primarily consists of two components: the biological reactor and the membrane modules, along with auxiliary components including tanks, blower aeration systems, pumps, pipelines, valves, and instrumentation.
Standard Equipment Selection
UPP offers a comprehensive range of MBR systems to meet various treatment capacity requirements, from small-scale to large industrial applications.
| Product Model | UPWSMBBR-5/10/20/30/50/70/100/150/200-A Type | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Treatment Capacity (24H) | 5 T/D | 10 T/D | 20 T/D | 30 T/D | 50 T/D | 70 T/D | 100 T/D | 150 T/D | 200 T/D |
| Dimensions (m) | 2.5×1.5×2.5m ~ 13.5×2.8×3.0m (L×H×W) | ||||||||
| Installed Power (kW) | 0.85 | 1.05 | 1.63 | 2.21 | 3.24 | 4.19 | 4.23 | 4.45 | 5.55 |
| Operating Weight (T) | 3 | 5 | 12 | 17 | 33 | 45 | 63 | 84 | 90 |
| Pre-regulation Tank Volume (m³) | 2 | 5 | 10 | 15 | 20 | 30 | 40 | 60 | 80 |
