System Overview

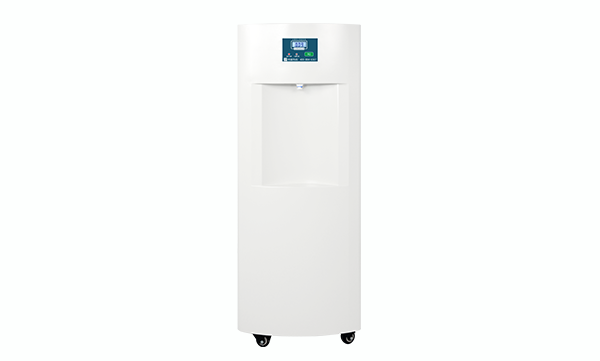

The Hongjoy UPS series ultra-pure water system features a simple and elegant design. It directly purifies tap water to meet the water quality requirements of national standards GB/T6682-92, ASTM, NCCLS, and ISO3696:1995. It is a cost-effective pure water preparation system for hospital testing laboratories.
System Functions
Intelligent Control
Microcomputer automatic control with system self-test, automatic protection against water/power interruption, automatic start/stop based on water tank level, and automatic system flushing.
Premium Components
Utilizes custom RO membranes, imported fittings, and other international brand components. Modular and integrated advanced process design ensures stable performance and simplified installation/maintenance.
Cost-Effective Operation
Specialized pre-treatment system significantly extends consumable life and reduces operating costs.
Technical Specifications
| Parameter | UPS-I-20/40/60/80/100L | UPS-II-20/40/60/80/100L | UPS-III-20/40/60/80/100L |
|---|---|---|---|
| Water Source | City tap water (TDS<400ppm), residual chlorine ≤0.05ppm, pressure 0.2-0.5MPa, temperature 5-45℃ | City tap water (TDS<400ppm), residual chlorine ≤0.05ppm, pressure 0.2-0.5MPa, temperature 5-45℃ | City tap water (TDS<400ppm), residual chlorine ≤0.05ppm, pressure 0.2-0.5MPa, temperature 5-45℃ |
| Production Capacity | 20/40/60/80/100 (L/h) | 20/40/60/80/100 (L/h) | 20/40/60/80/100 (L/h) |
| Biochemistry Water Quality | Conductivity ≤1μS/cm (online monitoring) | Conductivity ≤1μS/cm (online monitoring) | Conductivity ≤1μS/cm (online monitoring) |
| Purified Water | Conductivity ≤0.1μS/cm (online monitoring), microparticles <1/ml, absorbance <0.001, evaporation residue <1.0mg/L, heavy metals <0.1ppb | Conductivity ≤0.1μS/cm (online monitoring), microparticles <1/ml, absorbance <0.001, evaporation residue <1.0mg/L, heavy metals <0.1ppb | Conductivity ≤0.1μS/cm (online monitoring), microparticles <1/ml, absorbance <0.001, evaporation residue <1.0mg/L, heavy metals <0.1ppb |
| UP Ultra-Pure Water | — | Conductivity ≥18.0MΩ.cm (online monitoring), 99% bacteria removal rate | Conductivity ≥18.0MΩ.cm (online monitoring), microorganisms <1cfu/ml, endotoxin ≤0.001EU/ml |
| Main Unit Dimensions | 20-40L models: 420x570x1070(mm) 60/80/100L models: 420x540x1120(mm) |
20-40L models: 420x570x1070(mm) 60/80/100L models: 420x540x1120(mm) |
20-40L models: 420x570x1070(mm) 60/80/100L models: 420x540x1120(mm) |
| Power Consumption | 20-40L: 100W 60L: 150W 80-100L: 200W |
20-40L: 100W 60L: 150W 80-100L: 200W |
20-40L: 100W 60L: 150W 80-100L: 200W |
| Weight | 20-40L: 80Kg 60L: 100Kg 80-100L: 135Kg |
20-40L: 80Kg 60L: 100Kg 80-100L: 135Kg |
20-40L: 80Kg 60L: 100Kg 80-100L: 135Kg |
| Water Tank Configuration | 20-40L: 40L tank standard 60L: 40L tank standard (100L optional) 80-100L: 100L tank standard |
20-40L: 40L tank standard 60L: 40L tank standard (100L optional) 80-100L: 100L tank standard |
20-40L: 40L tank standard 60L: 40L tank standard (100L optional) 80-100L: 100L tank standard |
Note: Dimensions do not include feet/casters; dimensional tolerance 0-5mm
Product Models
UPS-I Series
For biochemistry analyzers, container washing, and general laboratory use.
UPS-II Series
For clinical immunoassays, ELISA detection, and reagent preparation.
UPS-III Series
For microbiology culture and applications requiring ultra-low endotoxin levels.
Application Areas
Type I Application
Suitable for automatic biochemistry analyzers from Hitachi, Roche, Beckman (Olympus), Toshiba, Abbott, Mindray, Kehua, Dirui, etc. Also for luminescence immunoassay and container washing.
Type II & III Application
Suitable for clinical immunoassays, ELISA detection, reagent preparation, clinical laboratory experiments, and microbial culture.
Special Notes
Important Configuration Considerations:
- For 80-100L models with inlet water pressure below 0.3MPa, a raw water booster system must be added.
- In areas with high residual chlorine in raw water, a ULU special filter or automatic activated carbon filter must be added.
- In areas with high water hardness, an automatic water softener must be added.
